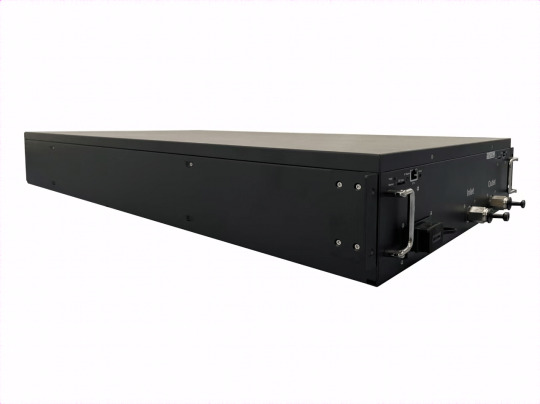

Bitmain Antminer S23 Hyd 3U
Bitmain Antminer S23 Hyd 3U - Image 2
,

Bitmain Antminer S23 Hyd 3U

PRE Order January 2026 – Antminer S23 Hydro 3U operates under the SHA-256 algorithm with a maximum hash rate of 1160Th/s and a power consumption of 11020W.

$34,000.00

Specifications

Product Glance Value
Model U3S23H
Sub 1160T
Version 10
Crypto algorithm/coins SHA256|BTC/BCH/BSV
Typical hashrate, TH/s(1-1) 1,160
Power on wall @35℃(1-2), Watt(1-1) 11,020
Power efficiency on wall@35℃(1-2), J/T(1-1) 9.5



Detailed Characteristics Value
Power Supply
Phase 3
Input voltage, Volt(2-1) 380~415
Input frequency range, Hz 50~60
Input max current, Amp 24
Power port LP34
Hardware Configuration
Networking connection mode RJ45 Ethernet 10/100M
Server size (length*width*height, w/o package), mm 900*482.6*130
Server size (length*width*height, with package), mm 1,150*640*260
Net weight, kg 42.0
Gross weight, kg 48.0
Environment Requirements
Inlet coolant temperature, °C 20~50
Coolant flow, L/min 16.0~20.0
Coolant pressure, bar ≤3.5
Working coolant(3-2) Antifreeze/Pure water/Deionized water
Coolant pH value Antifreeze: 7.0~9.0
Pure water: 6.5~7.5
Deionized water：8.5~9.5
Diameter of coolant pipe connector, mm OD14
Storage temperature, °C -20~70
Operation humidity(non-condensing), RH 10~90%

Notes:

(1-1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power on wall and power efficiency on wall fluctuate by ±5%.

(1-2) Inlet coolant temperature.

(2-1) Caution: Wrong input voltage may cause server damaged.

(2-2) For detailed working coolant use and maintenance instructions, please refer to “ANTSPACE HK3 Water Cooling Container & Dry-Wet Tower Product Manual“, Chapter 9, Article 3, Point 6, “Maintenance of Coolant”!
